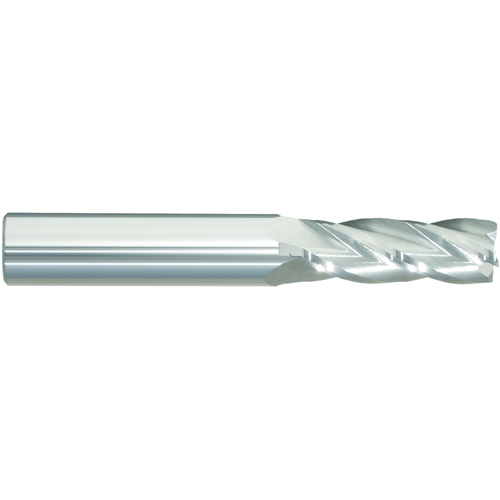

5 mm × 5 mm × 16 mm × 51 mm 4 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5961
Price: Log in For Price
| Cutting Diameter (DC) | 5 mm | Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Application | Finishing |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Type | Single End |
| Overall Length (OAL) | 51 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1969″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5961 |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.12500
Package Width
.37500
Package Weight
0.037
