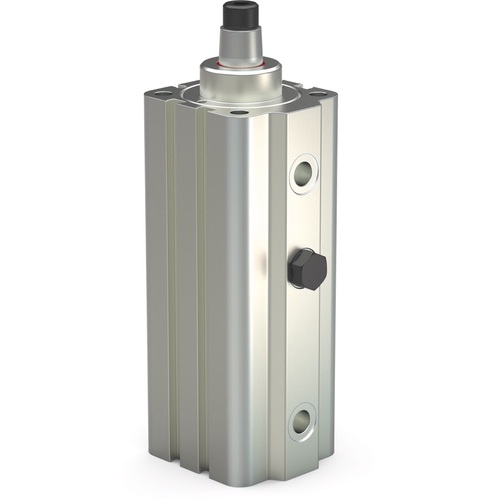

| Type | Pneumatic Swing Clamp | Vertical Clamp Stroke | 0.98 |
| Style | Adjustable Swing Direction | Distance Body Side to Piston Rod Centerline | 1.28 |
| Capacity | 138 lbs | Maximum Arm Length | 4.17 |
| Clamping Force | 138 lbs | Mounting Hole to Piston Rod Centerline | 0.99 |
| Maximum Opening | 90° | Cylinder Width | 2.56 |
| Base Width | 2.56 | Model No | 89R50-025-2 |
| Length | 2.56 | Maximum Holding Force | 138 lbs |
| Height | 8.94 | Clamp Height | 8.94 |
| Width | 2.56 | Stroke | 2.05 |
| Mount Diameter | M10 | Distance from Bottom to Extend Port Center | 1.05 |
| Mounting Length | 1.97 | Distance from Top to Clamp Port Center | 1.26 |
| Mounting Width | 1.97 | Cylinder Rod Diameter | 0.71 |
| Overall Length | 2.56 | Cylinder Height | 8.94 |
| Overall Height | 8.94 | Distance from Base to Cylinder Rod Height | 8.94 |
| Overall Width | 2.56 | Temperature Range | 140°F Max |
| Bore Size | 1.97 | Function | Swing 90° and clamp down |
| Port Size | G1/8 | Series | 89R |
| Hole Size | M10 | For Use With | 8JG and 8MA arms |
| Travel During Rotation | 1.06 | Weight | 3.97 lbs |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
4.0000
