| Thread Diameter Size (TDZ) | 1/4″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 20 | Thread Tolerance Class (TCTR) | H3 |

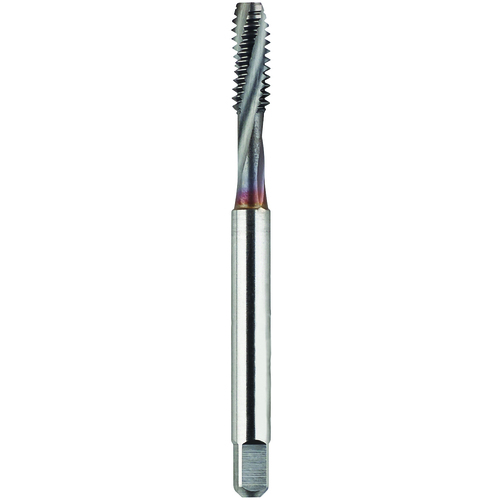

| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-1/2″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 7/16″ | Coating | TiCN |
| Usable Length (LU) | 7/16″ | Flute Type | Spiral Flute |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 17 Degrees | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | Series/List # | 2098C |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.05
