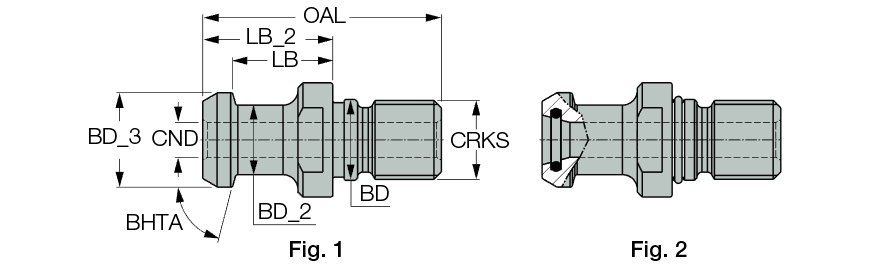

| Body Diameter (BD) | 0.748″ | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 | Tool Type | PS CAT |
| Body Length (LB) | 0.793″ | Body Half Taper Angle (BHTA) | 75 Degrees |
| Overall Length (OAL) | 1.889″ | Body Material | Steel |
| Body Length_2 (LB_2) | 1.029″ | Flange to Knob Length | 0.91″ |
| Application | | Collets & Accessories | | Flange to Angle Length | 0.71″ |
Product Features

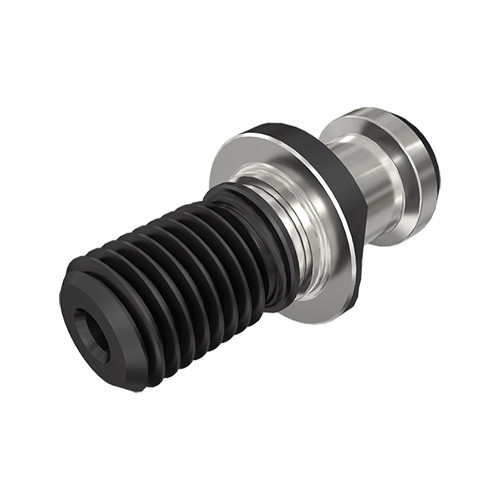

| Family Description | CAT Pull Stud JIS Retention Knob | Country of Origin | Italy |
Shipping Info
LocalField10
0
Package Length
2.55600
Package Width
1.08700
Package Height
1.08700
Package Weight
0.171
