ICP 0614-2M IC908

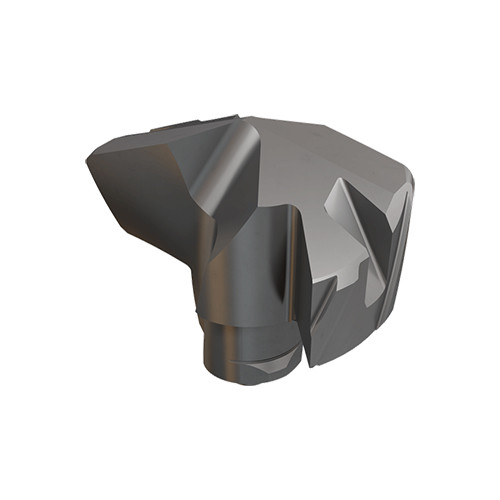

Drill Head; 0.614″ Dia. × 0.344″ Thickness ; 140 Degrees ; IC908 ; Carbide ; TiAlN
Price: Log in For Price

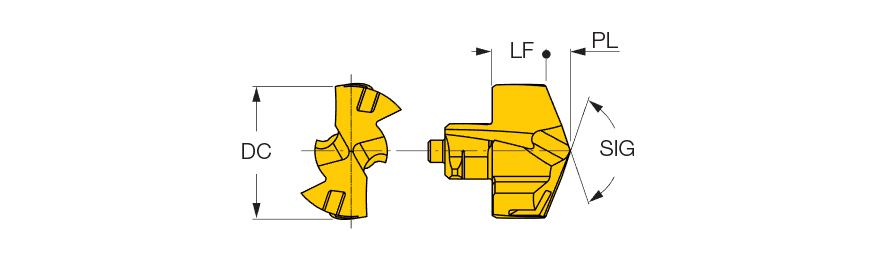

| Cutting Diameter (DC) | 0.614″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.344″ |
| Grade | IC908 | Point Length (PL) | 0.0937″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 15.0 | Coating | TiAlN |
| Functional Length (LF) | 1/4″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | Country of Origin | Israel |
| Remarks | Provides high surface finish of up to 64 microinches Ra hole cylindricity and straightness of up to.002 |
