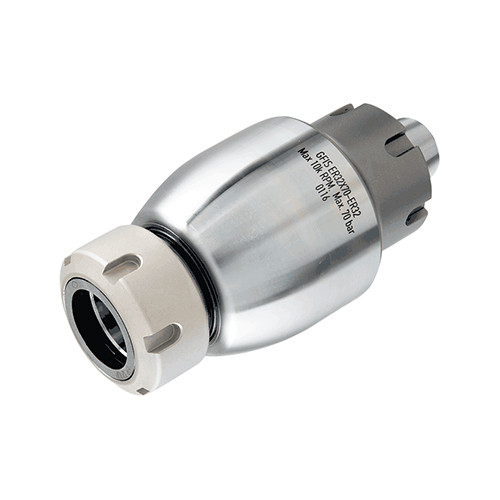

GFIS ER32X70-ER32
A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied.
Price: Log in For Price

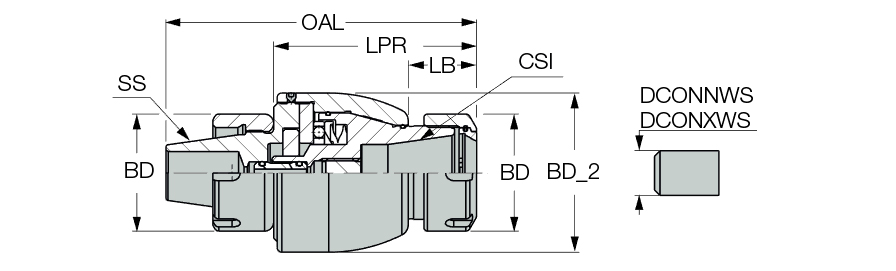

| Connection Size (CSI) | ER32 | Overall Length (OAL) | 133 mm |
| Tool Type | Cylindrical Shanks | Weight of Item (WT) | 1.69 Kg |
| Radial Float (RFI) | 0.22 mm | Body Material | Steel |
| Measurement Type | Metric |
Product Features
| Family Description | A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied. | Country of Origin | Germany |
| Remarks | Maximum 10K RPM Angular floating range 1.0° For Reaming 12-20 mm shank diameter range only |
Shipping Info
Package Weight
3.88
