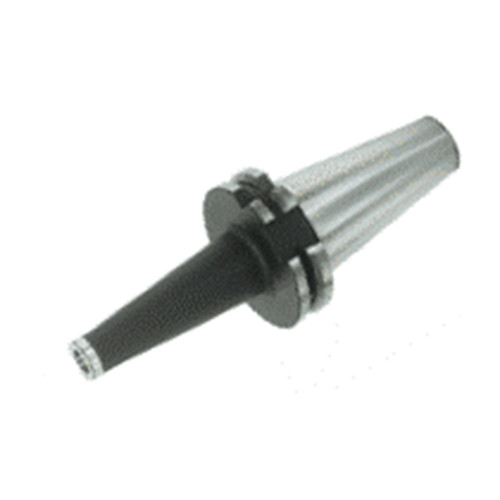

DIN69871 40 ODP10X58
FLEXFIT threaded connection shanks with integral DIN 69871 form ADB taper adaptation.
Price: Log in For Price
| Shank Size (SS) | 40 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 |
| Protruding Length (LPR) | 58 mm | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 30 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 20 mm | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | DIN69871 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Application | | DIN 69871 (ISO7388 1) | FLEXFIT | | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | FLEXFIT threaded connection shanks with integral DIN 69871 form ADB taper adaptation. | Country of Origin | Italy |
| Remarks | For Adaptation, Click on More Info. |
Shipping Info
Package Weight
2.077
