ECAI-B3 .125-.5CR015-1.5U IC08

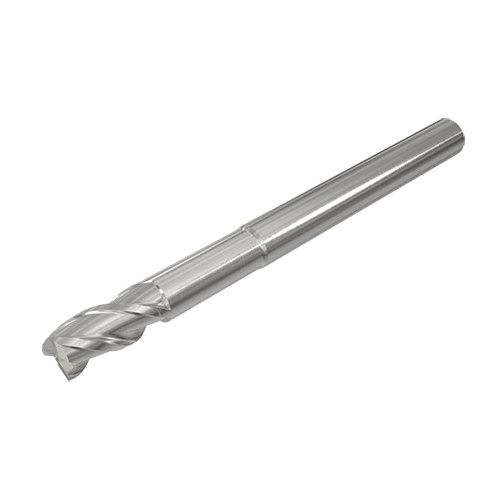

3 flute endmills for machining Aluminum and other non-ferrous materials.
Price: Log in For Price

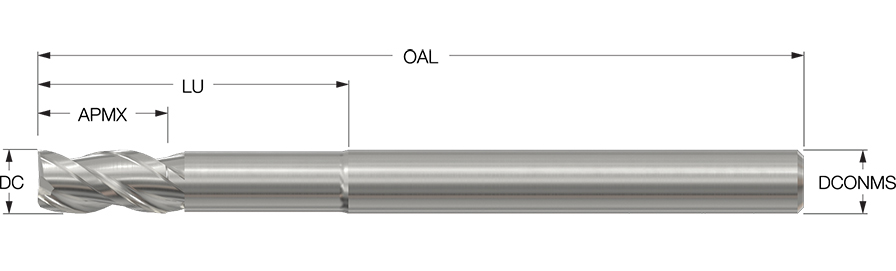

| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Cutting Edge Material | Carbide | Grade | IC08 |
| Coating | Uncoated | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.125″ |
| Usable Length (LU) | 1/2″ | Measurement Type | Inch |
Product Features
| Family Description | 3 flute endmills for machining Aluminum and other non-ferrous materials. | Country of Origin | USA |
