| Drill Bit Size / Cutting Diameter (DC) | 13.5 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.5 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH180 |
| Application | | General Drilling | | Measurement Type | Metric |

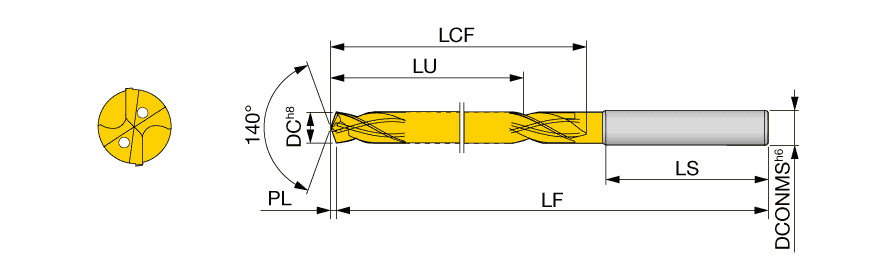

| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 70 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 112 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 176 mm |
| Point Length (PL) | 2.46 mm | Body Material | Carbide |
| Shank Length (LS) | 64 mm |
Product Features
| Family Description | GigaJetDrill series with coolant hole, L/D=5 | Country of Origin | Japan |
Shipping Info
LocalField10
0
Package Weight
0.569
