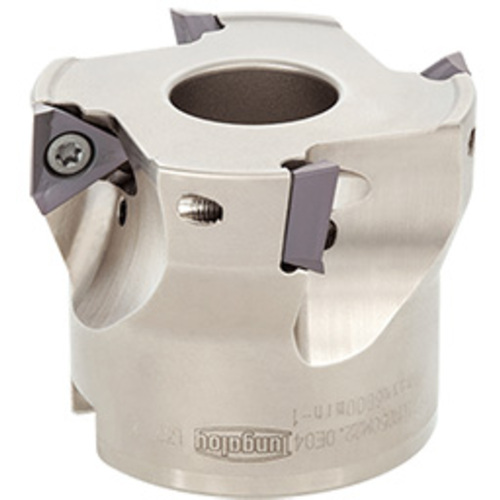

TPA10R063M22.0E06
High precision shoulder square mills with triangular inserts
Price: Log in For Price

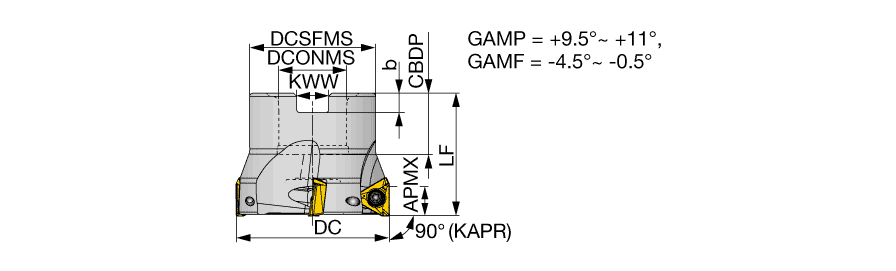

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | TOMT100404PDER-MJ |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 10 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.301
