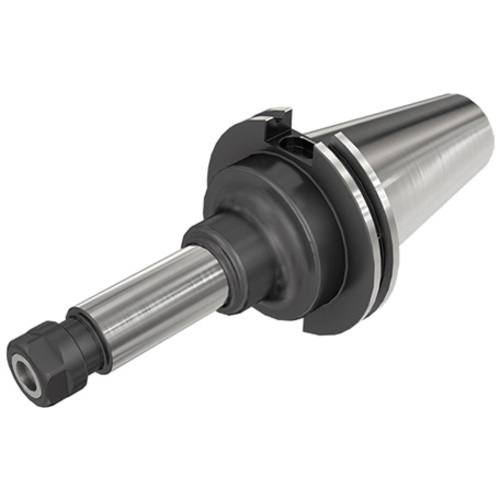

CAT50ER50X4.000
Collet Chuck ; CAT50 Shank Size ; ER50 Connection Size ; 3.07″ Body Dia. ; 3-1/4″ Body Length ; 0.396″ Min. Capacity ; 1.338″ Max. Capacity
Price: Log in For Price

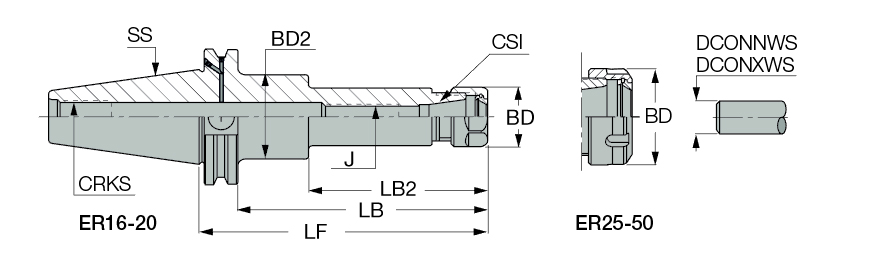

| Shank Size (SS) | CAT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER50 | Tool Type | Caterpillar |
| Body Diameter (BD) | 3.07″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.396″ |
| Body Diameter_3 (BD_3) | 2.752″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.338″ |
| Body Length (LB) | 3-1/4″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
| Functional Length (LF) | 4″ |
Product Features

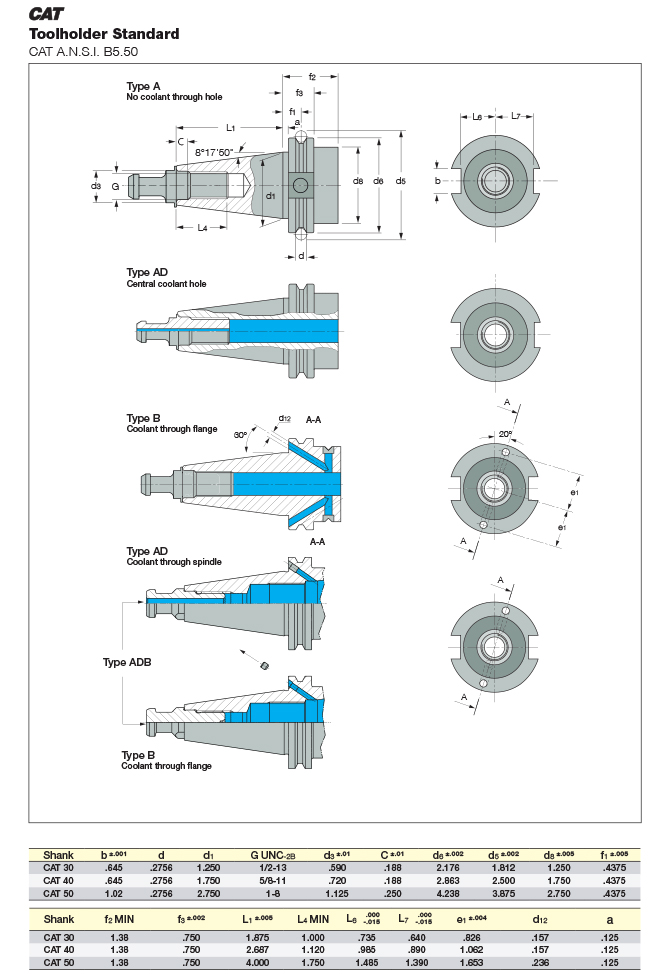

| Family Description | DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank. | Country of Origin | TURKEY |
Shipping Info
Package Weight
0.000
