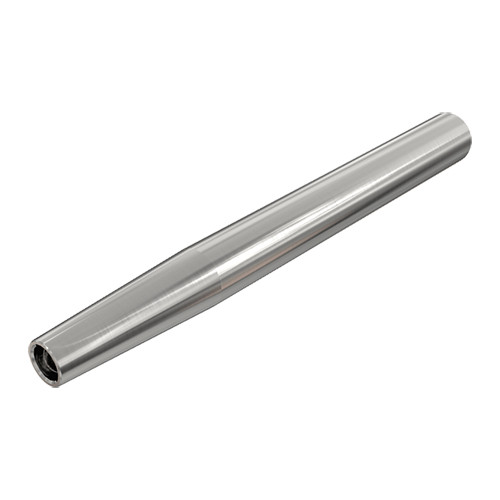

MM S-B-L125-C16-T06
MULTI-MASTER, 85° conical shanks for interchangeable milling heads.
Price: Log in For Price

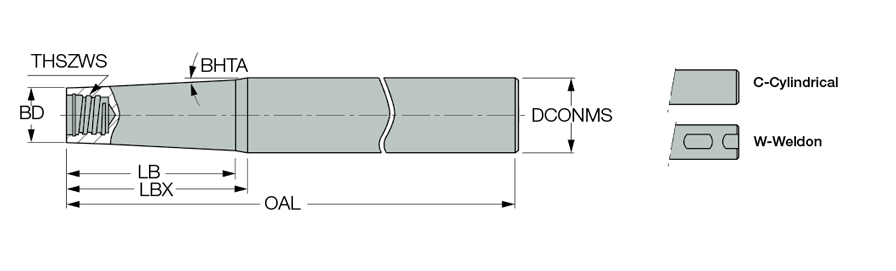

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Length (LB) | 31.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 125 mm |
| Material | Carbide | Weight of Item (WT) | 0.19 Kg |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 31.7 mm | Rotational Speed Maximum (RPMX) | 41280 Rev/min |
| Coolant Supply Property (CSP) | External | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 9.6 mm |
Product Features
| Family Description | MULTI-MASTER, 85° conical shanks for interchangeable milling heads. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.425
