DCN 0453-226-063R-5D

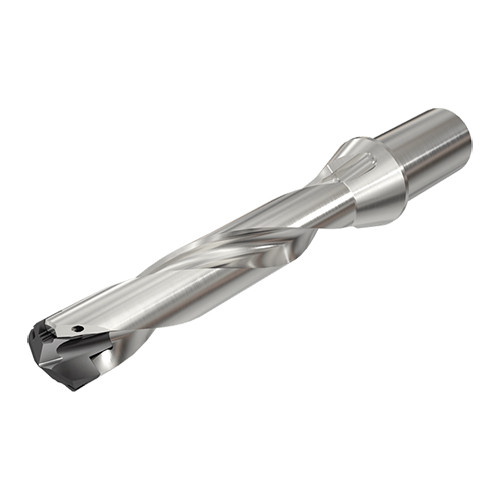

SUMOCHAM 5xD drills with indexable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

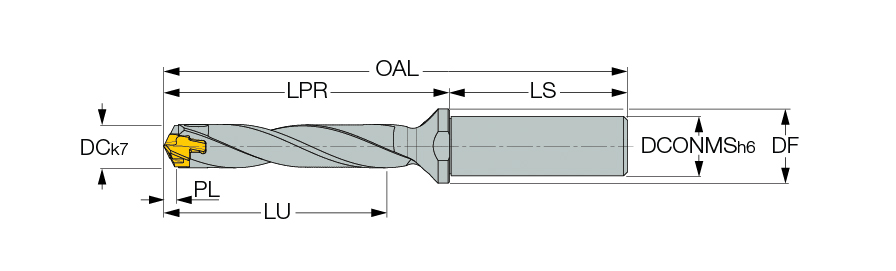

| Cutting Diameter (DC) | 0.453″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.333″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 115 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.069″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 11.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.453″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.471″ | Flange Diameter (DF) | 0.79″ |
| Protruding Length (LPR) | 2.92″ | Decimal Equivalent | 0.453″ |
| Functional Length (LF) | 2.838″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Overall Length (OAL) | 4.81″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 5xD drills with indexable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.315
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
