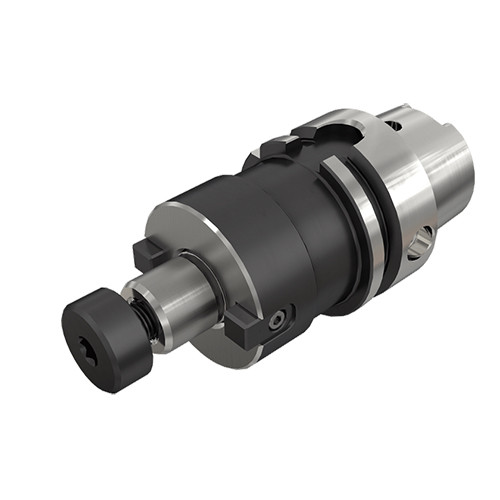

HSK A63 SEM1 1/2X2.375

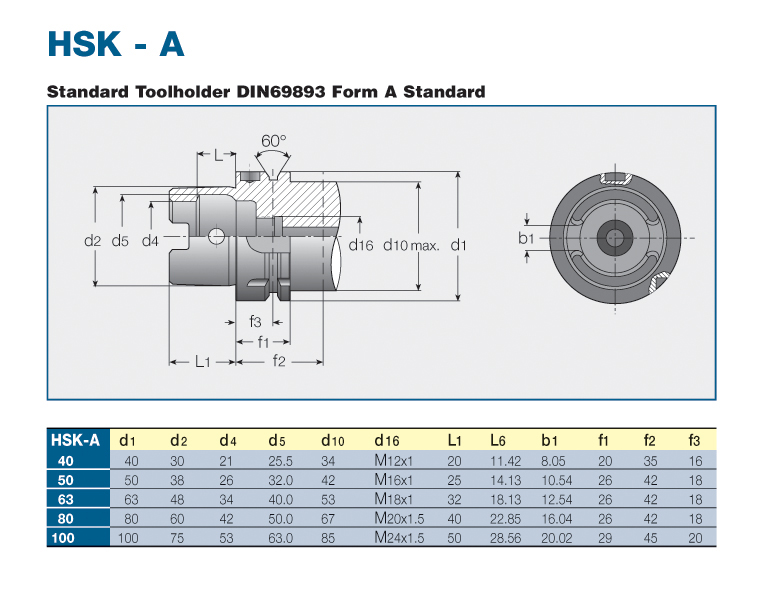

ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks.
Price: Log in For Price

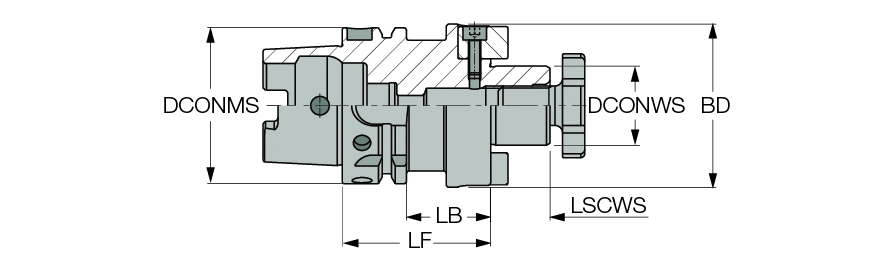

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Clamping Length Workpiece Side (LSCWS) | 0.94″ |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/2″ | Material | Steel |
| Shank Size (SS) | 63 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 2-3/8″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 2-3/8″ | Tool Type | HSK |
| Body Diameter (BD) | 3.07″ | Measurement Type | Inch |
| Shank Standard | HSK A | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | HSK |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). |
Shipping Info
Package Weight
4.592
