C6 GHDL-3
External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Price: Log in For Price

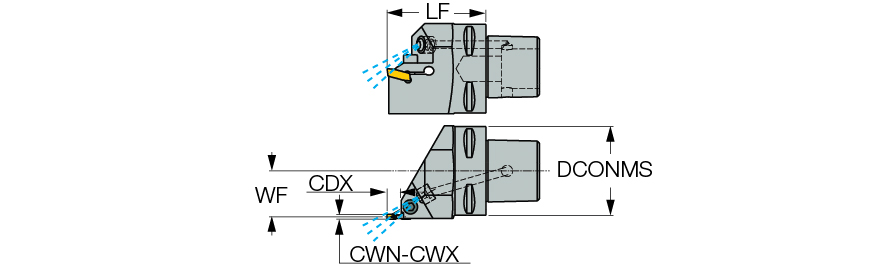

| Cutting Width Minimum (CWN) | 0.11″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.354″ | Body Material | Steel |
| Shank Height (H) | 1.26″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.26″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.661″ |
Product Features
| Family Description | External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | Country of Origin | Israel |

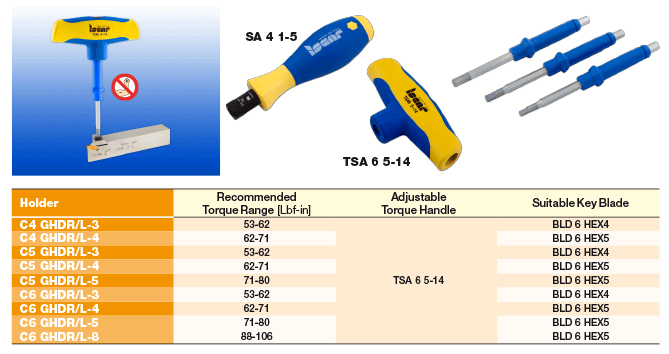

| Remarks | When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info" |
Shipping Info
Package Weight
2.734
