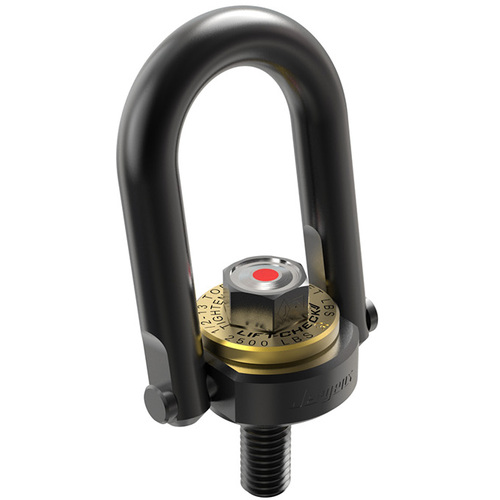

Center-Pull Hoist Ring with Standard U-Bar, 30,000 lbs Load Capacity, 2″-8 Thread Size
Price: Log in For Price
| Type | Center-Pull Hoist Ring with Standard U-Bar | Load Capacity | 30,000 lbs |
| Pivot Angle | 180 Degrees | Thread Size | 2″-8 |
| Swivel Angle | 360 Degrees |
Product Features
| Remarks | •Center Pull Hoist Rings are rated at 5:1 strength Factor & Proof tested to 200% of rated load capacity, in accordance with ASME B30.26. •Visual Tension Indicator confirms engagement - clearly illustrates whether bolt joint is loose or tight. •Ensures safety and provides accuracy of +/- 10% of designed tension. Hands-free inspection at a distance, prior to the lift. •Reduces installation time, no torque wrench or calibration needed. •Full 360° Swivel and 180° Pivot Action. •Material: Alloy Steel. •Finish: Black Oxide (Except Washer and Bolt: Zinc Plated). •U-Bar, Bolt, Pins, Base, Washer and Bushing are Magnetic Particle Inspected. | Country of Origin | USA |
Shipping Info
Package Weight
41.57
