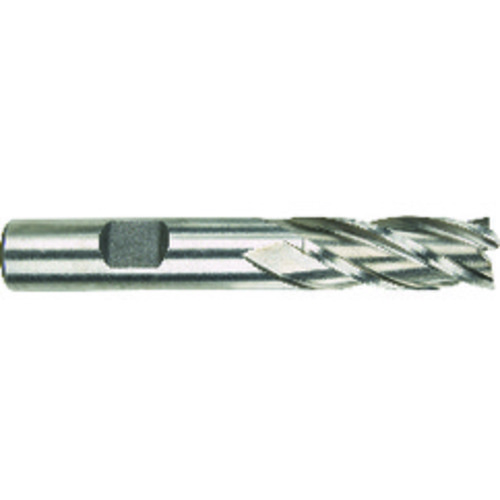

3/4″ × 3/4″ × 1 5/8″ × 3 7/8″ 4 Flute Single End HSS Finishing Center Cutting End Mill-TiN Series/List #4550G
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 3-7/8″ OAL ; 4 FL ; HSS ; TiN ; Series 4550G
Price: Log in For Price
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Single End |
| Overall Length (OAL) | 3-7/8″ | Length Group | Regular |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4550G |
| End Shape | Center Cutting |
Product Features
| Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
5.00000
Package Width
.75000
Package Height
.75000
Package Weight
0.41
