| Type | Fixture Clamp | Total Throw | .100″ |
| Thread Size | 1/2″-13 | Holding Force | 4,000 lbs |
| Overall Width | 1″ | Standard Pack | 8 |
| Model No | 10208 | Style | Inch |
| Hex Key Size | 5/16″ | Thread Length | 0.900″ |
| Thickness | .375″ | Width Across Flats | 1″ |
Product Features

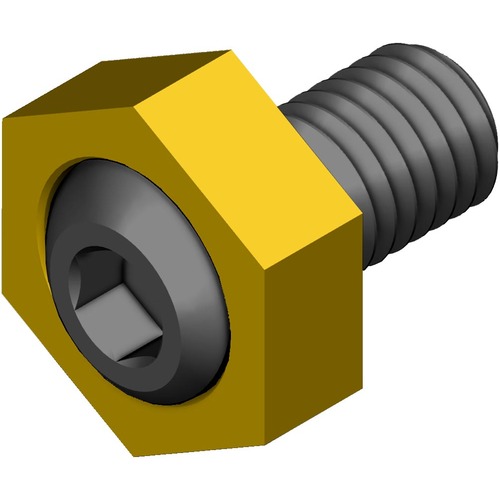

| Remarks | •The Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head & a hexagonal washer. •Small size allows more parts per load. •Simple design keeps cost low. | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
5.25000
Package Width
4.00000
Package Height
2.35000
Package Weight
0.95
