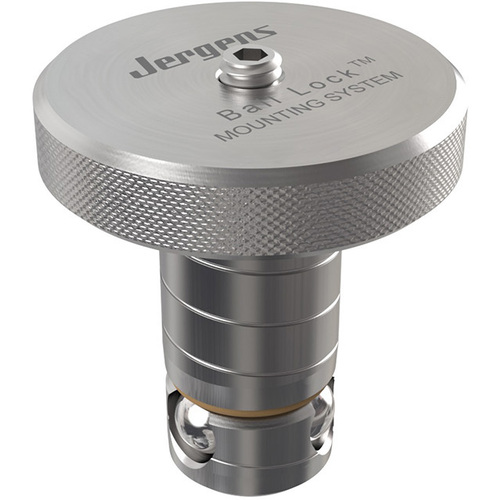

| Type | Shank | Head Diameter | 1-3/4″ |
| System Compatibility | Ball Lock® | Length Under Head | 1.53″ |
| Fixture Plate Thickness | 3/4″ | Hex Wrench Size | 1/8″ |
| Shank Diameter | 20 mm | Max Holddown Force | 3,000 lbs |
| Material | Stainless Steel | Recommended Screw Torque | 3 ft-lbs |
| Finish | Stainless Steel | Repair Kit Part Number | 49901SS |
| Head Thickness | 0.38″ |
Product Features
| Remarks | •Material: 17-4 PH Stainless Steel. •Heat Treat: Rc 40-45. | Country of Origin | USA |
Shipping Info
Package Weight
.434
